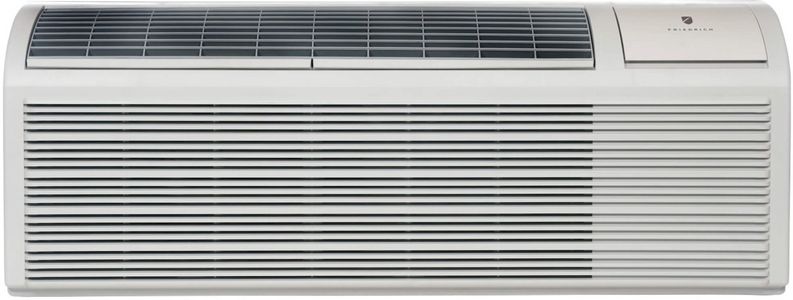

Friedrich ZoneAire® Premier 9,800 BTU White Through the Wall Air Conditioner


Model #:

PDH09R3SG(R3)

Model #: PDH09R3SG(R3)
1460839
Friedrich
$1,139.00

At a Glance

Product Dimensions 15.98"h x 42.09"w x 21.5"d

Our most efficient standard PTAC with exceptional performance and leading warranty for the lowest cost of operation. ZoneAire Premier PTAC is available in electric heat and heat pump options, ranging from 7,000 to 15,000 Btu.Read More

$1,139.00

Get to know this product.

Product Overview

Product Overview
Durable Construction

Superior materials and design reduce sound levels and improve overall guest satisfaction. Galvanized zinc coated steel wall sleeve and steel base pan undergo an 11-step preparation process, are powder coated with a polyester finish, and are oven-cured at high temperature for exceptional durability. Aluminum endplates reduce corrosion of the outdoor coil.

Comfort & Convenience

Intuitive unit controls are user friendly with easy-to-read LED display that can show either set point or actual room temperature as selected by owner. Dehumidification removes moisture in cool mode to improve comfort and reduce the chance of mold and mildew growth.

Sound Reduction Technology

Friedrich PTACs come standard with two permanently lubricated fan motors for added durability and reduced sound levels indoors. Units also have a quiet, efficient rotary compressor mounted with vibration isolators to keep the compressor running smoothly and quietly. High-density insulation and steel inner wall block outdoor noise.

Warranty & Support

Friedrich’s industry leading warranty features 2-year full warranty on parts and labor and 5-year limited warranty. Our nationwide service network and U.S.-based Friedrich expert technical team ensures you get fast, knowledgeable service.

Maintenance and Installation

Modular product design ensures easy access to key components for cleaning and repairs, including washable, lift-out air filters. Surehold Front Cover System® securely attaches the front each time. Unit may be installed low to the floor.

Useful Documents
Specifications

General Specs

Product Weight (lbs.)114.7
Width (in.)42.09
Depth (in.)21.5
Height (in.)15.98
ColorWhite
Frequency60
Control TypeElectronic Buttons
Manufacturer Warranty2 Year Parts & Labor/5 Year Sealed System
CollectionZoneAire® Premier
Color Finish NameWhite
Air Conditioner TypeThrough-the-Wall
Maximum CFM330
BTU Cooling Rating9800
BTU Heat Rating8600
Shipping Depth (in.)25.59
Shipping Width (in.)45.05
Shipping Height (in.)17.88
Voltage230/208
Air Conditioner FeaturesDehumidifier
Moisture Removal Capacity Pints Per Day50.64
Air Filter FeaturesRemovable, Washable
Heater IncludedYes
