Product Dimensions 5"h x 35.88"w x 22"d

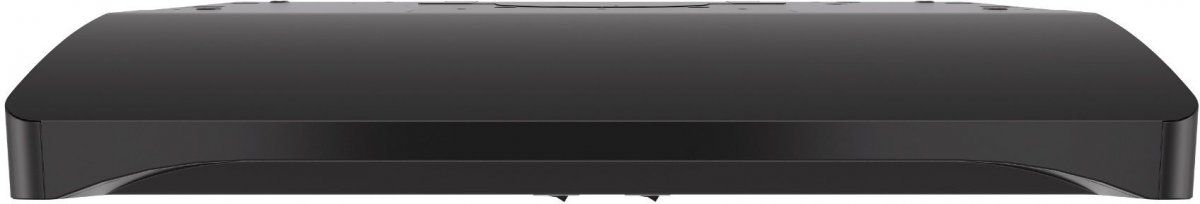

The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Sophisticated curves and hidden controls offer a beautiful alternative to traditional designs.Read More
Model replaced BQSJ136BL
The Captur™ system's advanced blower/wheel design features a centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM
Forward placement and smooth-flow blower wheel design ensure quiet, 1.5 sones operation at normal speed
Hidden on/off rocker switches control blower speeds and light levels
Dishwasher-safe, micro-mesh filters provide efficient grease removal
EZ1 brackets enable single-person installation in less than half the time of traditional methods
ADA compliant, remote operation is possible using a standard UL approved wall switch.
EZ1 system enables easy single-person installation in up to half the time of traditional methods
Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination.
Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
General Specs | |
| Color | Black |
| Color-Finish Name | Black |
| Range Hood Type | Under Cabinet |
| Ventilation Type | Convertible (Both) |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 7 |
| Sones Rating | 1.5 |
| Noise Level (Sones) | Quiet - (Low) |
| Maximum CFM | 250 |
| Smart Compatible | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 35.88 |
| Height (in.) | 5 |
| Depth (in.) | 22 |
| ADA Compliant | Yes |
| ENERGY STAR Certified | No |
| Collection | Elite Alta™ 1 Series |
| Manufacturer Warranty | 1 Year |
| Voltage | 120 |
| Amp | 1.4 |
| Frequency | 60 |
Overview | |
| Control type | 2-speed Rocker |
| Lighting | 2-level Halogen (included) |
| Grease Filters | Micro Mesh (Qty. 2) |
| Installation Hardware | EZ1 Bracket |
| Recirculation | Non-ducted filters sold separately |
